Examples

McCormick Function

The McCormick function is a multimodal function that is commonly used to test optimization algorithms. It is defined as f(x,y) = sin(x + y) + (x - y)**2 - 1.5*x + 2.5*y + 1 along the domain [-1.5, 4] x [-3, 4]. The global minimum of this function is located at f(-0.54719, -1.54719) = -1.9133.

We implement the McCormick function as follows (note genetic maximizes fitness, so we negate the function):

def fitness(params):
    x, y = params
    return -(np.sin(x + y) + (x - y)**2 - 1.5*x + 2.5*y + 1)

We then implement our mutation function to scale our parameters randomly, while staying within our search space:

import random
def mutate(params):
    new_params = params[:]
    index = random.randint(0, len(params) - 1)
    new_params[index] *= random.uniform(0, 2)
    new_params[0] = max(-1.5, min(4, new_params[0]))
    new_params[1] = max(-3, min(4, new_params[0]))
    return new_params

We implement our generation function to randomly generate parameters:

import random
def generate():
        return [random.uniform(-1.5, 4), random.uniform(-3, 4)]

Finally, we run our genetic algorithm. We choose to run the algorithm for 10 generations, with 50 candidate solutions in each, using 5 parents and implementing elitism with 5 survivors:

from quickopt.genetic import genetic_double
result = genetic_double(fitness=objective, mutate=mutate, generate=generate, generations=10, population_size=50, reproduction_ct=5, survivor_ct=5, verbose=1)

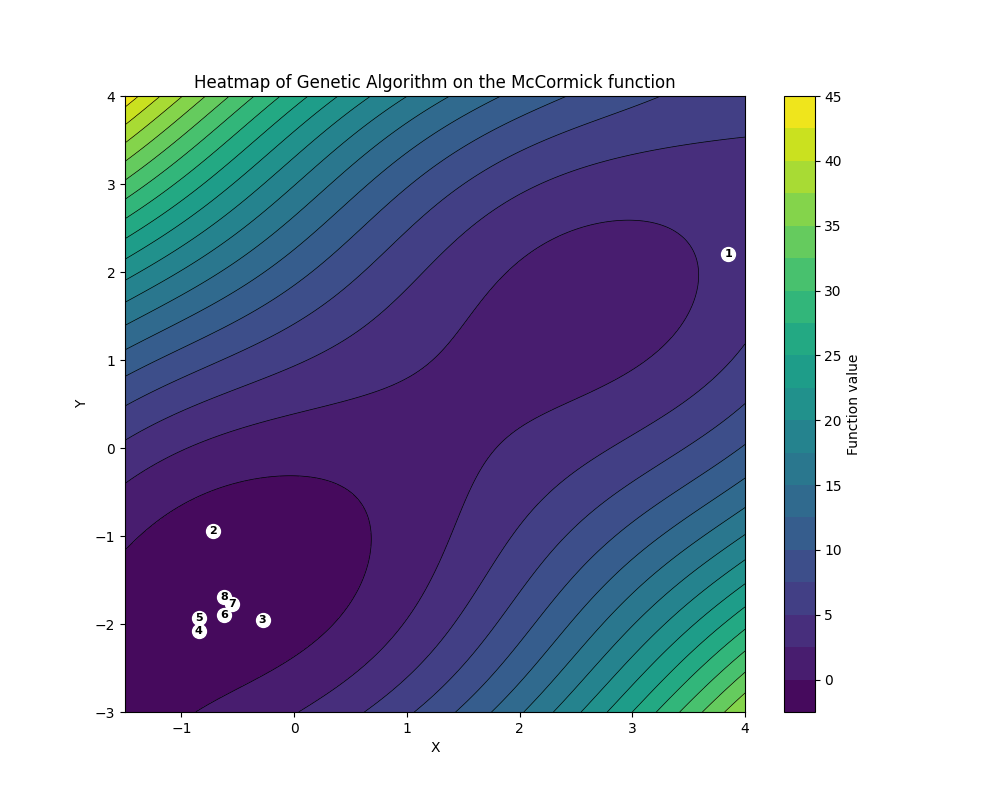

The following is a heatmap of the optimization process, with each point representing a new optimal solution found by the algorithm:
